Features and Benefits:

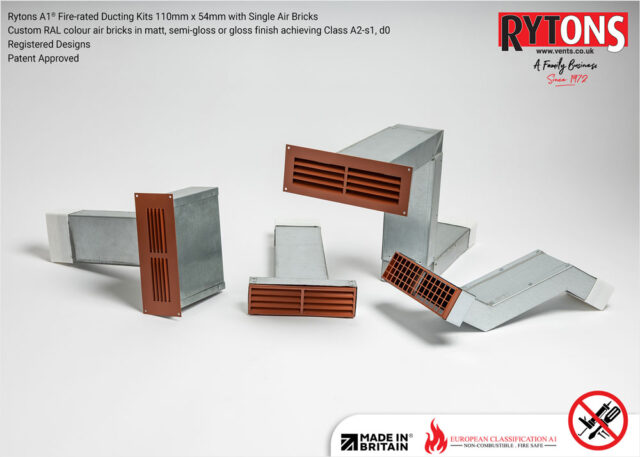

Rytons A1® Fire-rated Ducting Kits 110mm x 54mm with Single Air Bricks
General Details
- Custom-made metal ducting kits compatible with 110mm x 54mm rectangular HVAC supply and extract ducting.
- Straight, 90° balcony, S-shaped window head, and angled kit designs are available to suit a variety of locations and avoid obstructions.
- Made from A1 classified galvanised steel for fire safety, strength and durability.
- Non-combustible, suitable for multi-storey and higher-risk buildings.
- Choice of air brick styles to suit different airflow and design needs, with flanged options for cladding applications to conceal cut edges for a neat finish.
- Air bricks maintain low resistance and high airflow, exceeding 90% of the duct free area.
- Grilles supplied custom powder coated to Class A2-s1, d0, with options from the RAL Classic colour chart in matt, semi-gloss or gloss finishes. Signature architectural finishes available on request.
- Integrated weather protection includes discreet drainage holes and angled louvres to promote water runoff and reduce the risk of transfer into the duct.
- Air bricks and plenums are brick-sized (not duct-sized) for simple installation using standard mortar joints, ensuring an aligned appearance in brickwork.
- Suitable for:
- The external walls of high-rise relevant buildings over 18m high (11m high in Scotland).
- The external walls of relevant buildings 11m+ in height or more than 5 storeys, undergoing unsafe cladding remediation work (Building Safety Act 2022).
- The external walls of higher-risk buildings at least 18m high or with at least 7 storeys (Building Safety Act 2022).
- The external surfaces of residential purpose group buildings more than 11m high.
- The external surfaces of residential purpose group buildings 11m high or less where an external wall is within 1m of the relevant boundary.
- Bespoke design service available. For further information contact our Technical Sales Office on 01536 511874 or email admin@rytons.com.
- Telescopic fitting air brick allows the overall length of the ducting kit to be extended during installation, providing flexibility to accommodate minor variations in the external façade.
- Supplied ready to install with no on-site assembly required.
- Duct factory fitted to the plenum adaptor.
- No screw fixing or sealing needed, saving time and labour and ensuring correct alignment and airtight joints.
A1 Fire Classification Explained:
- Rytons A1® Fire-rated Ducting Kits 110mm x 54mm with Single Air Bricks are made from galvanised steel. Galvanised steel is considered fire class A1 without testing, as per European Commission paper 96/603/EC referred to in BS EN 13501-1:2018.
- Classification: A1. Definition: Non-combustible. Description: No contribution to fire.
Reference Material:
- England & Wales: view extracts >>
- Approved Document B: Fire safety (Volume 1) (2019 edition incorporating 2020 and 2022 amendments) for England.
- Approved Document B: Fire safety (Volume 2) (2006 edition incorporating 2010, 2013, 2016, 2017 and 2020 amendments) for Wales.
- The Building Safety Act.
- Scotland: view extracts >>
- Building Standards Scotland Domestic Technical Handbook.
Rytons A1® Fire-rated Ducting Kit 110mm x 54mm with Return Grille Single Air Brick
Return Grille Single Air Brick: 7,200mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085455.
Patent Approved.
Product Code: A1DK110X54RGS.
Download Drawing. | Download Golden Thread.
Rytons A1® Fire-rated Ducting Kit 110mm x 54mm with Return Grille Single Air Brick Flanged
Return Grille Single Air Brick Flanged (15mm flange with corner screw holes): 7,200mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085457.
Patent Approved.
Product Code: A1DK110X54RGSF.
Download Drawing. | Download Golden Thread.
Rytons A1® Fire-rated Ducting Kit 110mm x 54mm with Square Holed Single Air Brick
Square Holed Single Air Brick: 9,032mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085455.
Patent Approved.
Product Code: A1DK110X54SQS.
Download Drawing. | Download Golden Thread.
Rytons A1® Fire-rated Ducting Kit 110mm x 54mm with Square Holed Single Air Brick Flanged
Square Holed Single Air Brick Flanged (15mm flange with corner screw holes): 9,032mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085457.
Patent Approved.
Product Code: A1DK110X54SQSF.
Download Drawing. | Download Golden Thread.
Rytons A1® Fire-rated Ducting Kit 110mm x 54mm with FlowRyt® Single Air Brick
FlowRyt® Single Air Brick: 8,000mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085455.
Patent Approved.
Product Code: A1DK110X54FRS.
Download Drawing. | Download Golden Thread.
Rytons A1® Fire-rated Ducting Kit 110mm x 54mm with FlowRyt® Single Air Brick Flanged
FlowRyt® Single Air Brick Flanged (15mm flange with corner screw holes): 8,000mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085457.
Patent Approved.
Product Code: A1DK110X54FRSF.
Download Drawing. | Download Golden Thread.
NBS Source Specifications:
Rytons A1® Fire-rated 90° Balcony Ducting Kits 110mm x 54mm:
Rytons A1® Fire-rated 90° Ducting Kit 110mm x 54mm with Return Grille Single Air Brick Flanged
Return Grille Single Air Brick Flanged (15mm flange with corner screw holes): 7,200mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom drop from underside of duct to face of air brick (refer to drawing).
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085461.
Patent Approved.
Product Code: A190DK110X54RGSF.
Download Drawing. | Download Golden Thread.
Rytons A1® Fire-rated 90° Ducting Kit 110mm x 54mm with Square Holed Single Air Brick Flanged
Square Holed Single Air Brick Flanged (15mm flange with corner screw holes): 9,032mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom drop from underside of duct to face of air brick (refer to drawing).
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085461.
Patent Approved.
Product Code: A190DK110X54SQSF.
Download Drawing. | Download Golden Thread.
Rytons A1® Fire-rated 90° Ducting Kit 110mm x 54mm with Single FlowRyt® Grille Flanged
FlowRyt® Single Air Brick Flanged (15mm flange with corner screw holes): 8,000mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom drop from underside of duct to face of air brick (refer to drawing).
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085461.
Patent Approved.
Product Code: A190DK110X54FRSF.
Download Drawing. | Download Golden Thread.
NBS Source Specifications:
Rytons A1® Fire-rated S-Shape Window Head Ducting Kits 110mm x 54mm:
Rytons A1® Fire-rated S-Shape Ducting Kit 110mm x 54mm with Return Grille Single Air Brick
Return Grille Single Air Brick: 7,200mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom ‘S’ top (refer to drawing dimension a).
Custom ‘S’ bottom (refer to drawing dimension b).
Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Custom height (refer to drawing dimension c).
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6087692.
Patent Approved.
Product Code: A1SSDK110X54RGS.
Download Drawing. | Download Golden Thread.
Rytons A1® Fire-rated S-Shape Ducting Kit 110mm x 54mm with Return Grille Single Air Brick Flanged
Return Grille Single Air Brick Flanged (15mm flange with corner screw holes): 7,200mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom ‘S’ top (refer to drawing dimension a).
Custom ‘S’ bottom (refer to drawing dimension b).
Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Custom height (refer to drawing dimension c).
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6087693.
Patent Approved.
Product Code: A1SSDK110X54RGSF.
Download Drawing. | Download Golden Thread.
Rytons A1® Fire-rated S-Shape Ducting Kit 110mm x 54mm with Square Holed Single Air Brick
Square Holed Single Air Brick: 9,032mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom ‘S’ top (refer to drawing dimension a).
Custom ‘S’ bottom (refer to drawing dimension b).
Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Custom height (refer to drawing dimension c).
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6087692.
Patent Approved.
Product Code: A1SSDK110X54SQS.
Download Drawing. | Download Golden Thread.
Rytons A1® Fire-rated S-Shape Ducting Kit 110mm x 54mm with Square Holed Single Air Brick Flanged
Square Holed Single Air Brick Flanged (15mm flange with corner screw holes): 9,032mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom ‘S’ top (refer to drawing dimension a).
Custom ‘S’ bottom (refer to drawing dimension b).
Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Custom height (refer to drawing dimension c).
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6087693.
Patent Approved.
Product Code: A1SSDK110X54SQSF.
Download Drawing. | Download Golden Thread.
Rytons A1® Fire-rated S-Shape Ducting Kit 110mm x 54mm with FlowRyt® Single Air Brick
FlowRyt® Single Air Brick: 8,000mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom ‘S’ top (refer to drawing dimension a).
Custom ‘S’ bottom (refer to drawing dimension b).
Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Custom height (refer to drawing dimension c).
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6087692.
Patent Approved.
Product Code: A1SSDK110X54FRS.
Download Drawing. | Download Golden Thread.
Rytons A1® Fire-rated S-Shape Ducting Kit 110mm x 54mm with FlowRyt® Single Air Brick Flanged
FlowRyt® Single Air Brick Flanged (15mm flange with corner screw holes): 8,000mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom ‘S’ top (refer to drawing dimension a).
Custom ‘S’ bottom (refer to drawing dimension b).
Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Custom height (refer to drawing dimension c).
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6087693.
Patent Approved.
Product Code: A1SSDK110X54FRSF.
Download Drawing. | Download Golden Thread.
NBS Source Specifications:
Rytons A1® Fire-rated Angled Ducting Kits 110mm x 54mm:
Rytons A1® Fire-rated Angled Ducting Kit 110mm x 54mm with Return Grille Single Air Brick
Return Grille Single Air Brick: 7,200mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom straight length (refer to drawing Dim. A).
Custom angled length (refer to drawing Dim. B), plus angle or height (refer to drawing Dim. C).
Custom straight length (refer to drawing Dim. D).
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6078054.
Patent Approved.
Product Code: A1ADK110X54RGS.
Download Drawing. | Download Golden Thread.

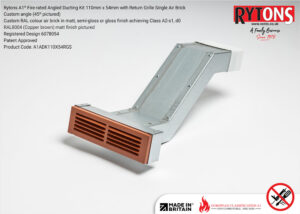

Rytons A1® Fire-rated Angled Ducting Kit 110mm x 54mm with Return Grille Single Air Brick Flanged
Return Grille Single Air Brick Flanged (15mm flange with corner screw holes): 7,200mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom straight length (refer to drawing Dim. A).
Custom angled length (refer to drawing Dim. B), plus angle or height (refer to drawing Dim. C).
Custom straight length (refer to drawing Dim. D).
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6078055.
Patent Approved.
Product Code: A1ADK110X54RGSF.
Download Drawing. | Download Golden Thread.

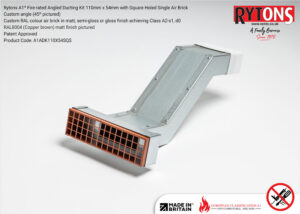

Rytons A1® Fire-rated Angled Ducting Kit 110mm x 54mm with Square Holed Single Air Brick
Square Holed Single Air Brick: 9,032mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom straight length (refer to drawing Dim. A).
Custom angled length (refer to drawing Dim. B), plus angle or height (refer to drawing Dim. C).
Custom straight length (refer to drawing Dim. D).
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Patent Approved.
Product Code: A1ADK110X54SQS.
Download Drawing. | Download Golden Thread.

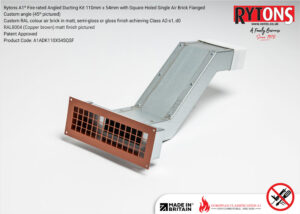

Rytons A1® Fire-rated Angled Ducting Kit 110mm x 54mm with Square Holed Single Air Brick Flanged
Square Holed Single Air Brick Flanged (15mm flange with corner screw holes): 9,032mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom straight length (refer to drawing Dim. A).
Custom angled length (refer to drawing Dim. B), plus angle or height (refer to drawing Dim. C).
Custom straight length (refer to drawing Dim. D).
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Patent Approved.
Product Code: A1ADK110X54SQSF.
Download Drawing. | Download Golden Thread.

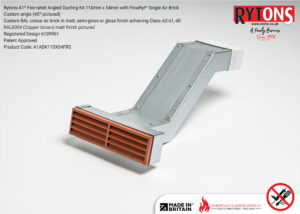

Rytons A1® Fire-rated Angled Ducting Kit 110mm x 54mm with FlowRyt® Single Air Brick
FlowRyt® Single Air Brick: 8,000mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom straight length (refer to drawing Dim. A).
Custom angled length (refer to drawing Dim. B), plus angle or height (refer to drawing Dim. C).
Custom straight length (refer to drawing Dim. D).
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6109961.
Patent Approved.
Product Code: A1ADK110X54FRS.
Download Drawing. | Download Golden Thread.

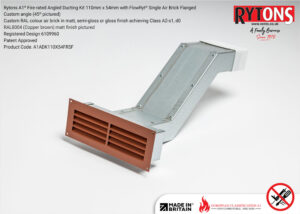

Rytons A1® Fire-rated Angled Ducting Kit 110mm x 54mm with FlowRyt® Single Air Brick Flanged
FlowRyt® Single Air Brick Flanged (15mm flange with corner screw holes): 8,000mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom straight length (refer to drawing Dim. A).
Custom angled length (refer to drawing Dim. B), plus angle or height (refer to drawing Dim. C).
Custom straight length (refer to drawing Dim. D).
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6109960.
Patent Approved.
Product Code: A1ADK110X54FRSF.
Download Drawing. | Download Golden Thread.
Rytons is proud to be a family run business and British manufacturer since 1972
Pressure Loss Data
Golden Thread
