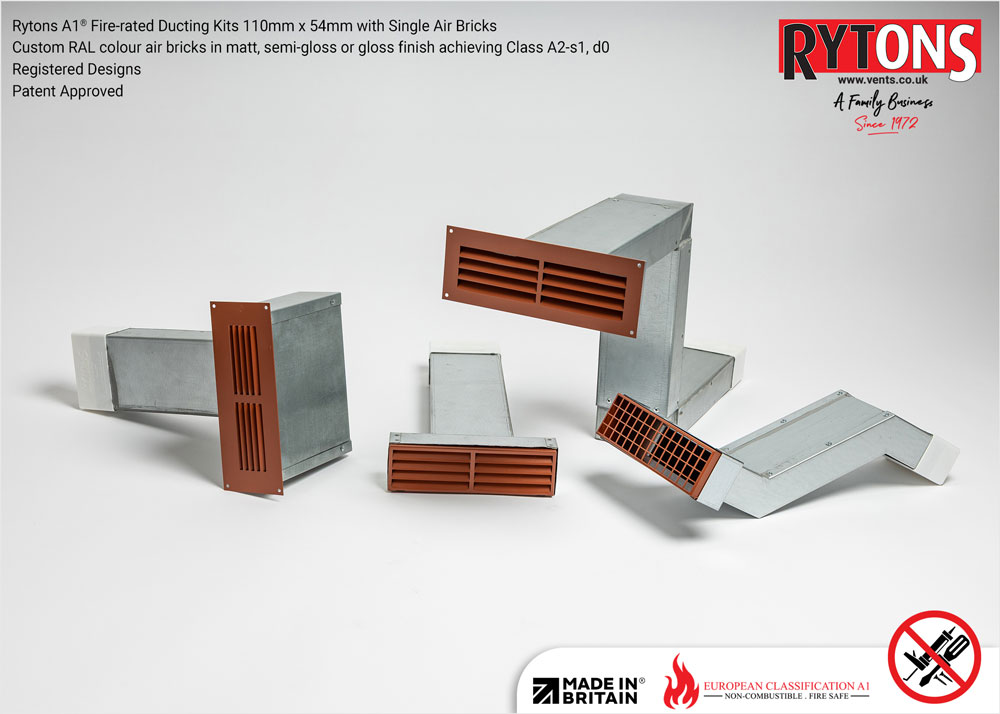

Rytons A1® Fire-rated Ducting Kits 110mm x 54mm with Single Air Bricks

General Details

Features and Benefits:

  • A range of tailor-made metal ducting kits compatible with rectangular HVAC supply and extract ducting 110mm x 54mm.
  • Made from Class A1 fire-rated galvanised steel and compliant with regulations for the requirement of non-combustible ducting in the external walls of high-rise buildings over 18m (11m in Scotland) and those 11m and above undergoing unsafe cladding remediation work.
  • Straight kit, 90° balcony kit and s-shape window head kit designs provide options to accommodate a variety of ductwork locations.
  • Three air brick grille styles satisfy the varying design, airflow, and vent placement requirements of buildings.  For cladding, flanged options cover cut edges to maintain the external appearance.
  • Air bricks maintain low resistance and have high airflows of over 90% of the free area of the duct.
  • Custom powder coated air brick.  Choose from the RAL Classic colour chart in matt, semi-gloss or gloss finish (achieving Class A2-s1, d0) for an air brick that matches cladding or brickwork.  Signature architectural coatings are also available.
  • Built-in weather protection.  Drainage holes in the air brick provide discreet water outlets, and louvred styles feature angled grilles to promote runoff, reducing the risk of water transfer into the duct.
  • Air brick/plenum are brick size (rather than duct size) for easy installation using standard mortar joints for a neat appearance in brickwork.
  • Telescopic fitting air brick allows the overall length of the kit to be extended during installation giving the flexibility to handle minor variations in the external façade.
no-install-required-stamp-ORIG-220221-small
  • Supplied ready to install with no on-site assembly required.
  • Duct factory fitted to the plenum adaptor.
  • No screw fixing or sealing required, saving time, labour and ensuring correct alignment and airtight joints throughout.

A1 Fire Classification Explained:

  • Rytons A1® Fire-rated Ducting Kits 110mm x 54mm with Single Air Bricks are made from galvanised steel.  Galvanised steel is considered fire class A1 without testing, as per European Commission paper 96/603/EC referred to in BS EN 13501-1:2018.  The material is not compromised at a temperature of 800°C, as required by the Building Regulations Approved Document B for ductwork spanning the cavity.  Classification: A1.  Definition: Non-combustible.  Description: No contribution to fire.

Reference Material:

  • Building Regulation 7(2) – Ban of combustible materials in the external wall of buildings.
  • Building Regulation Approved Document B (fire safety).
  • Building standards Scotland technical handbook – domestic (2.7).

Specifications:

  • If you can’t see a ducting kit to meet your requirements, we offer a bespoke service to design, fabricate and supply the perfect solution.  To discuss your requirements, call our technical sales office on 01536 511874 or email admin@rytons.com.

Rytons A1® Fire-rated Straight Ducting Kits 110mm x 54mm:

Rytons A1® Fire-rated Ducting Kit 110mm x 54mm with Return Grille Single Air Brick
Return Grille Single Air Brick: 7,200mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085455.
Product Code: A1DK110X54RGS.
Download Drawing.

Rytons A1® Fire-rated Ducting Kit 110mm x 54mm with Return Grille Single Air Brick Flanged
Return Grille Single Air Brick Flanged (15mm flange with corner screw holes): 7,200mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085457.
Product Code: A1DK110X54RGSF.
Download Drawing.

Rytons A1® Fire-rated Ducting Kit 110mm x 54mm with Square Holed Single Air Brick
Square Holed Single Air Brick: 9,032mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085455.
Product Code: A1DK110X54SQS.
Download Drawing.

Rytons A1® Fire-rated Ducting Kit 110mm x 54mm with Square Holed Single Air Brick Flanged
Square Holed Single Air Brick Flanged (15mm flange with corner screw holes): 9,032mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085457.
Product Code: A1DK110X54SQSF.
Download Drawing.

Rytons A1® Fire-rated Ducting Kit 110mm x 54mm with FlowRyt® Single Air Brick
FlowRyt® Single Air Brick: 8,000mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085455.
Product Code: A1DK110X54FRS.
Download Drawing.

Rytons A1® Fire-rated Ducting Kit 110mm x 54mm with FlowRyt® Single Air Brick Flanged
FlowRyt® Single Air Brick Flanged (15mm flange with corner screw holes): 8,000mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085457.
Product Code: A1DK110X54FRSF.
Download Drawing.

NBS Specifications:

Rytons A1® Fire-rated 90° Balcony Ducting Kits 110mm x 54mm:

Rytons A1® Fire-rated 90° Ducting Kit 110mm x 54mm with Return Grille Single Air Brick Flanged
Return Grille Single Air Brick Flanged (15mm flange with corner screw holes): 7,200mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom drop from underside of duct to face of air brick (refer to drawing).
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085461.
Product Code: A190DK110X54RGSF.
Download Drawing.

Rytons A1® Fire-rated 90° Ducting Kit 110mm x 54mm with Square Holed Single Air Brick Flanged
Square Holed Single Air Brick Flanged (15mm flange with corner screw holes): 9,032mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom drop from underside of duct to face of air brick (refer to drawing).
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085461.
Product Code: A190DK110X54SQSF.
Download Drawing.

Rytons A1® Fire-rated 90° Ducting Kit 110mm x 54mm with Single FlowRyt® Grille Flanged
FlowRyt® Single Air Brick Flanged (15mm flange with corner screw holes): 8,000mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom drop from underside of duct to face of air brick (refer to drawing).
Custom overall length (including plastic duct connector – refer to drawing). Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6085461.
Product Code: A190DK110X54FRSF.
Download Drawing.

NBS Specifications:

Rytons A1® Fire-rated S-Shape Window Head Ducting Kits 110mm x 54mm:

Rytons A1® Fire-rated S-Shape Ducting Kit 110mm x 54mm with Return Grille Single Air Brick
Return Grille Single Air Brick: 7,200mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom ‘S’ top (refer to drawing dimension a).
Custom ‘S’ bottom (refer to drawing dimension b).
Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Custom height (refer to drawing dimension c).
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6087691.
Product Code: A1SSDK110X54RGS.
Download Drawing.

Rytons A1® Fire-rated S-Shape Ducting Kit 110mm x 54mm with Return Grille Single Air Brick Flanged
Return Grille Single Air Brick Flanged (15mm flange with corner screw holes): 7,200mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom ‘S’ top (refer to drawing dimension a).
Custom ‘S’ bottom (refer to drawing dimension b).
Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Custom height (refer to drawing dimension c).
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6087690.
Product Code: A1SSDK110X54RGSF.
Download Drawing.

Rytons A1® Fire-rated S-Shape Ducting Kit 110mm x 54mm with Square Holed Single Air Brick
Square Holed Single Air Brick: 9,032mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom ‘S’ top (refer to drawing dimension a).
Custom ‘S’ bottom (refer to drawing dimension b).
Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Custom height (refer to drawing dimension c).
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6087691.
Product Code: A1SSDK110X54SQS.
Download Drawing.

Rytons A1® Fire-rated S-Shape Ducting Kit 110mm x 54mm with Square Holed Single Air Brick Flanged
Square Holed Single Air Brick Flanged (15mm flange with corner screw holes): 9,032mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom ‘S’ top (refer to drawing dimension a).
Custom ‘S’ bottom (refer to drawing dimension b).
Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Custom height (refer to drawing dimension c).
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6087690.
Product Code: A1SSDK110X54SQSF.
Download Drawing.

Rytons A1® Fire-rated S-Shape Ducting Kit 110mm x 54mm with FlowRyt® Single Air Brick
FlowRyt® Single Air Brick: 8,000mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom ‘S’ top (refer to drawing dimension a).
Custom ‘S’ bottom (refer to drawing dimension b).
Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Custom height (refer to drawing dimension c).
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6087691.
Product Code: A1SSDK110X54FRS.
Download Drawing.

Rytons A1® Fire-rated S-Shape Ducting Kit 110mm x 54mm with FlowRyt® Single Air Brick Flanged
FlowRyt® Single Air Brick Flanged (15mm flange with corner screw holes): 8,000mm² free area (over 90% of the duct).
Custom RAL colour air brick in matt, semi-gloss or gloss finish achieving Class A2-s1, d0.
Custom top or bottom air brick position (refer to drawing).
Custom ‘S’ top (refer to drawing dimension a).
Custom ‘S’ bottom (refer to drawing dimension b).
Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
Custom height (refer to drawing dimension c).
Properties: Class A1 fire-rated 0.9mm galvanised steel. Class A2-s1, d0 fire-rated RAL colour powder coating. Spot welded. Everbuild Fire Mate intumescent and acoustic sealant used on all gaps.
Registered Design 6087690.
Product Code: A1SSDK110X54FRSF.
Download Drawing.

NBS Specifications:

MiB_Logo_Horizontal_Colour

Rytons is proud to be a family run business and British manufacturer since 1972

Pressure Loss Data
